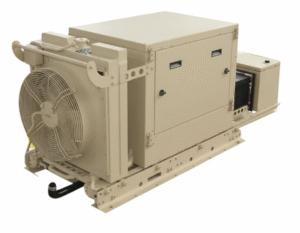

SST 10kW Tunnel Generator Three Phase 120/208VAC
Compact and Quiet Three-Phase Power for Military Applications

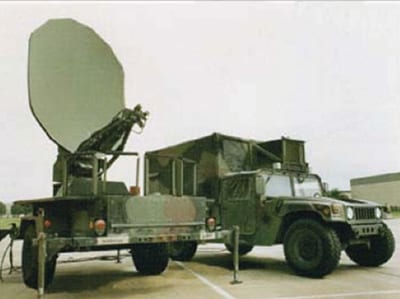

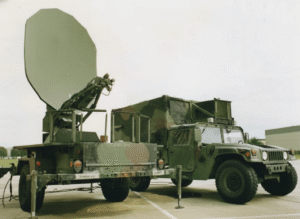

The Fischer Panda SST 10kW 60Hz Three-Phase Generator delivers 120/208V AC power with a compact footprint and low operating noise – just 57 dBA at 23 feet. Built specifically for HMMWV SICPS systems and other tactical platforms, this generator provides reliable performance under the most demanding conditions.
Designed and manufactured in the U.S., this model is one of the few 100% liquid-cooled asynchronous generators, cooling both the engine and alternator for exceptional durability and stable, low-distortion power delivery.
Key Advantages of the SST 10kW Three Phase Generator
- Quiet Operation: Only 57 dBA @ 23 feet, reducing acoustic signature in the field.
- Asynchronous Alternator: No brushes or diodes – fewer moving parts and less maintenance.
- Fully Liquid-Cooled: Advanced design cools both engine and alternator for reliability in hot environments.
- Digital Diagnostic Control: Provides real-time monitoring and fault alerts for quick maintenance.
- EMI Hardened: Meets electromagnetic interference protection standards for sensitive equipment.
- Battle-Ready Design: Features emergency stop, battle short switch, and automatic shutdown for safety.
- Lightweight and Portable: Weighs just 759 lbs wet – no additional sound abatement needed in shelter.
Technical Specifications
| Category | Specification |
|---|---|
| Engine | Kubota Turbo-Charged Diesel Engine |
| Cylinders | 3 |
| Frequency | 60Hz (also available in 50Hz) |
| Voltage Output | 120/208V Three Phase |
| Power Rating | 10kW @ 0.8 pf |
| Amperage | 34A per phase |
| Fuel Type | Diesel, DL-1, DL-2, Jet Fuel JP-5, JP-8 |
| Fuel Consumption | 0.8 gal/hr @ rated max load |
| Noise Level | 57 dBA @ 23 feet |
| Cooling System | 100% Liquid-cooled (engine + alternator) |
| Start System | 24VDC electric start |
| Preheat System | 24V glow plugs & flame start |
| Dimensions (L × W × H) | 74” × 24.8” × 28.8” (1880 × 630 × 732 mm) |
| Weight (Wet) | 759 lbs (345 kg) |
| Operating Temp | -40°F to 120°F (-40°C to 50°C) |
| Storage Temp | -50°F to 160°F (-45°C to 71°C) |
| Derate | 3.5% per 1000 ft above 4000 ft |
| Protective Devices | Auto shutdown (oil, temp, overload) + battle short switch |
Field-Proven Design for Military and Tactical Operations
The SST 10kW Three Phase Generator is engineered for mobile command units, communications trailers, and defense shelters that require continuous, reliable three-phase power. Its asynchronous alternator ensures a stable sine wave output, even under fluctuating loads, ideal for sensitive electronics and field-deployed systems.
With its low noise, low heat signature, and robust build, this generator exceeds expectations in both tactical and humanitarian deployments.

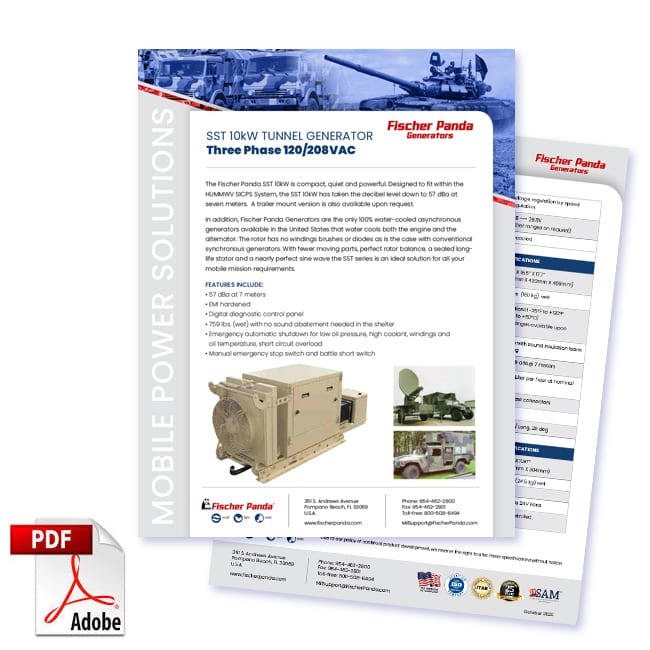

Download Data Sheet
