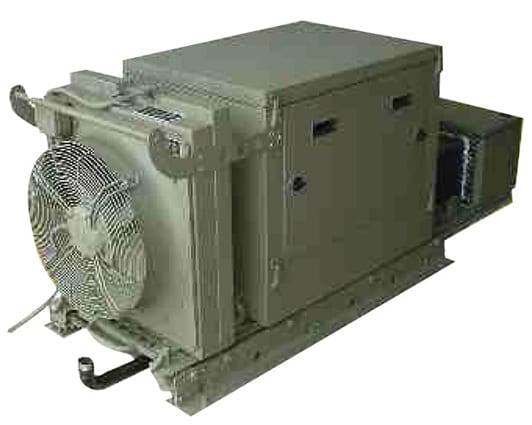

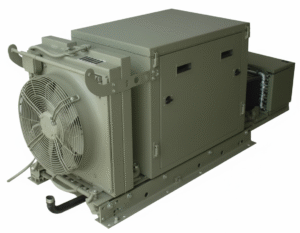

SST 10kW Tunnel Generator Single Phase 120/240VAC
Compact, Quiet, and Reliable Power for Military Applications
The Fischer Panda SST 10kW Military Generator delivers dependable 120/240V AC power in a compact and ultra-quiet design, operating at just 57 dBA at 23 feet. Built specifically for HMMWV SICPS systems and similar tactical platforms, this generator is engineered for low noise, minimal heat output, and consistent power under demanding conditions.
As the only 100% liquid-cooled asynchronous military generator available in the United States, the SST 10kW cools both the engine and alternator — ensuring longer service life, quieter performance, and improved reliability in extreme climates.
Key Advantages of the SST 10kW Generator
- Quiet Operation: 57 dBA @ 23 feet, nearly silent tactical performance.
- Asynchronous Alternator: No brushes, diodes, or slip rings. Fewer moving parts and higher durability.
- Liquid-Cooled System: Coolant circulates through both engine and alternator for superior heat management.
- Digital Diagnostic Panel: Provides real-time data, automatic shutdowns, and error alerts.
- EMI Hardened: Tested to meet military electromagnetic interference protection standards.
- Rugged Durability: 759 lbs wet weight, built for shelter or trailer mounting.
- Safety Systems: Auto shutdown for low oil pressure, high temp, and overload – plus manual emergency stop and battle short switch.
Technical Specifications
| Category | Specification |
|---|---|
| Engine | Kubota Turbo-Charged Diesel |
| Cylinders | 3 |
| Power Rating | 10 kW @ 0.8 pf |
| Frequency | 60 Hz (50 Hz optional) |
| Voltage Output | 120/240V Single Phase |
| Amperage | 102A / 51A |
| Fuel Type | Diesel, DL-1, DL-2, Jet Fuel JP-5, JP-8 |
| Fuel Consumption | 0.8 gal/hr @ rated max load |
| Noise Level | 57 dBA @ 23 feet |
| Cooling | 100% liquid-cooled (engine + alternator) |
| Dimensions (L × W × H) | 74” × 24.8” × 28.8” (1880 × 630 × 732 mm) |
| Weight (Wet) | 759 lbs (345 kg) |
| Temperature Range | Operating -40°F to 120°F / Storage -40°F to 160°F |
| Start System | 24VDC electric start with glow plugs and flame start |
| Protective Devices | Automatic shutdown (oil, temp, overload) + battle short switch |
Designed for Tactical Mobility
The SST 10kW 60Hz Single Phase Generator was engineered for mobile command centers, communication vehicles, and defense shelters that demand high power in a lightweight, quiet system. Its asynchronous alternator eliminates traditional wear-prone components, extending service life and ensuring consistent electrical output even in remote deployments.
Optional trailer-mounted versions provide greater deployment flexibility for field and humanitarian applications.

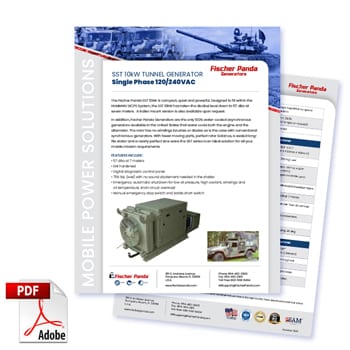

Download Data Sheet
