Fischer Panda Marine AC 5000

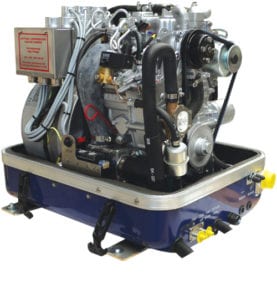

Fischer Panda 5000 AC Marine Generator

The Fischer Panda 5000 AC (60Hz or 50Hz) features a twin-cylinder Kubota Diesel engine for longevity and reliability.

Fischer Panda Generators are the ideal choice for the professional sailor or power boater. When space is tight, weight is critical or noise is an issue, many boaters choose Fischer Panda. The Fischer Panda 5000 AC marine generator is powered by the reliable freshwater-cooled Kubota twin-cylinder diesel engine and our superior asynchronous water-cooled alternator.

All Fischer Panda generators come standard with 100% freshwater cooling, superior sound enclosure, bulkhead external connections, remote fuel lift pump and remote-control panel.

Depending upon the kilowatt size Fischer Panda Generators can weigh up to 50% less than a conventional generator and are up to 30% smaller in size.

  • Less weight, size and noise
  • Extremely quiet (54dba@7meter)
  • Direct driven fresh water-cooled Asynchronous Alternator
  • Robust twin-cylinder Kubota diesel engine
  • VCS electronic governor provides excellent voltage stability
  • Integrated internal booster enabling high inductive load starting
  • Gear driven raw water pump
  • Safety-shutdowns for all critical functions
  • Self-protected against overload
  • Ignition protection for gas powered boats
  • Comes complete with harnesses, remote-control panel, sound enclosure and remote fuel lift pump
  • 5 Year limited warranty
Frequency (Hz) 60
Voltage (V) 120/240
Power Nominal (kW) 5
Current (Amp) 40/20
Engine Data Kubota Z482
Cylinder/Hp 2 cyl/13.3
Displacement 479 ccm/29.23 cu.in.
Cooling Heat Exchanger
Noise Level dBa @ 7 meters 54
Length Inches 21.25
Width Inches 17.5
Height Inches 21.9
Weight (Wet) lbs. 268
Frequency (Hz) 50
Voltage (V) 230
Current Max. (Amp) 21
Peak Output (kW) 4.8
Continuous Output (kW) 4.2
Engine Type Kubota Z482
Cylinders/Hp 2 cyl/13.3
Displacement 479 ccm/21.23 cu. in.
Cooling Heat Exchanger
Noise Level dBa @ 7 meters 54
Length Inches 21.25
Width Inches 17.5
Height Inches 21.9
Weight (Wet) lbs. 268

Control Panel P4Remote Control Panel
The nine function control panel with digital hour meter includes 10 meters of control panel cable. This panel shows the necessary information in the event of a malfunction. It will aid in the diagnosis of the problem.

Sound ShieldSound Shield
With the need for cooling airflow eliminated, Fischer Panda generators can be encapsulated in a three-piece insulated fiberglass sound shield (or aluminum, standard in models 16 kW and larger) to seal off offensive sound.

Motor Mounts
External Soft Motor Mounts for extra smooth operation.

Vented Loop
(anti-syphon valve) Recommended for all installations. Prevents water from siphoning back to the engine and minimizes potential electrolysis. Made with a stainless steel tube and nylon valve for long life and easy service.

Gas Separator
The exhaust water separator provides very low back pressure and extra quiet exhaust noise.

Low Profile Muffler
Low inlet muffler for installations where the muffler cannot be installed lower than the genset.

Panda 5000 AC Data Sheet 60Hz           Panda 5000 AC Data Sheet 50Hz            Manual           Drawings

Due to our continual product development, we reserve the right to alter any specifications without warning. All ratings refer to air and water temperature of 20°. De-rating at 1% approx. every 100m altitude and 2% approx. every 5°C air-temperature above 20°C and 2% approx. every 1°C water-temperature above 20°C.
